The Real Clean Architecture in Android demonstrates a pragmatic approach to building maintainable, testable, and scalable Android applications while strictly adhering to Clean Architecture principles and SOLID design patterns.

​
Core Principles

This architecture is built on three fundamental pillars:

Separation of Concerns

Clear boundaries between domain, data, and presentation layers

Dependency Rule

Dependencies point inward toward the domain layer

Framework Independence

Domain logic is free from Android framework dependencies

​
Architecture Layers

The application is organized into three distinct layers, each with specific responsibilities:
1

Domain Layer

Contains business logic, entities, and use cases. This layer is completely framework-independent and written in pure Kotlin/Kotlin Multiplatform.Key Components:
  • Business entities (e.g., Cart, Product, User)
  • Repository interfaces
  • Use cases that orchestrate business logic
  • Domain-specific types and validation
2

Data Layer

Implements repository interfaces and handles data operations. Manages caching, network calls, and data transformation.Key Components:
  • Repository implementations
  • Data transfer objects (DTOs)
  • Data source abstractions
  • Data mapping logic
3

Presentation Layer

Handles UI rendering and user interactions. Built with Jetpack Compose and Android-specific frameworks.Key Components:
  • ViewModels
  • Composable screens
  • UI state models
  • Presentation logic

​
Dependency Flow

The architecture follows the Dependency Inversion Principle, ensuring that dependencies flow from outer layers toward the domain core:
The domain layer defines interfaces (contracts), while outer layers provide implementations. This allows the core business logic to remain independent of implementation details.

​
Real-World Example: Cart Feature

Let’s see how the layers work together in the cart feature:

​
Domain Layer

Defines the business entity and repository contract:
cart-component/src/commonMain/kotlin/com/denisbrandi/androidrealca/cart/domain/model/Cart.kt
data class Cart(val cartItems: List<CartItem>) {
    fun getSubtotal(): Money? {
        return if (cartItems.isNotEmpty()) {
            val currency = cartItems[0].money.currencySymbol
            var subtotal = 0.0
            cartItems.forEach {
                subtotal += it.money.amount * it.quantity
            }
            Money(subtotal, currency)
        } else {
            null
        }
    }

    fun getNumberOfItems(): Int {
        return cartItems.sumOf { it.quantity }
    }
}
cart-component/src/commonMain/kotlin/com/denisbrandi/androidrealca/cart/domain/repository/CartRepository.kt
internal interface CartRepository {
    fun updateCartItem(userId: String, cartItem: CartItem)
    fun observeCart(userId: String): Flow<Cart>
    fun getCart(userId: String): Cart
}

​
Data Layer

Implements the repository interface:
cart-component/src/commonMain/kotlin/com/denisbrandi/androidrealca/cart/data/repository/RealCartRepository.kt
internal class RealCartRepository(
    private val cacheProvider: CacheProvider
) : CartRepository {

    private val flowCachedObject: FlowCachedObject<JsonCartCacheDto> by lazy {
        cacheProvider.getFlowCachedObject(
            fileName = "cart-cache",
            serializer = JsonCartCacheDto.serializer(),
            defaultValue = JsonCartCacheDto(emptyMap())
        )
    }

    override fun observeCart(userId: String): Flow<Cart> {
        return flowCachedObject.observe().map { cachedDto ->
            mapToCart(userId, cachedDto)
        }
    }

    override fun getCart(userId: String): Cart {
        return mapToCart(userId, flowCachedObject.get())
    }

    // ... mapping logic
}

​
Presentation Layer

Consumes use cases to display data:
cart-ui/src/main/java/com/denisbrandi/androidrealca/cart/presentation/viewmodel/RealCartViewModel.kt
internal class RealCartViewModel(
    observeUserCart: ObserveUserCart,
    private val updateCartItem: UpdateCartItem,
    private val stateDelegate: StateDelegate<CartScreenState>
) : CartViewModel, StateViewModel<CartScreenState> by stateDelegate, ViewModel() {

    init {
        stateDelegate.setDefaultState(CartScreenState(Cart(emptyList())))
        observeUserCart().onEach { cart ->
            stateDelegate.updateState { CartScreenState(cart) }
        }.launchIn(viewModelScope)
    }

    override fun updateCartItemQuantity(cartItem: CartItem) {
        updateCartItem(cartItem)
    }
}

​

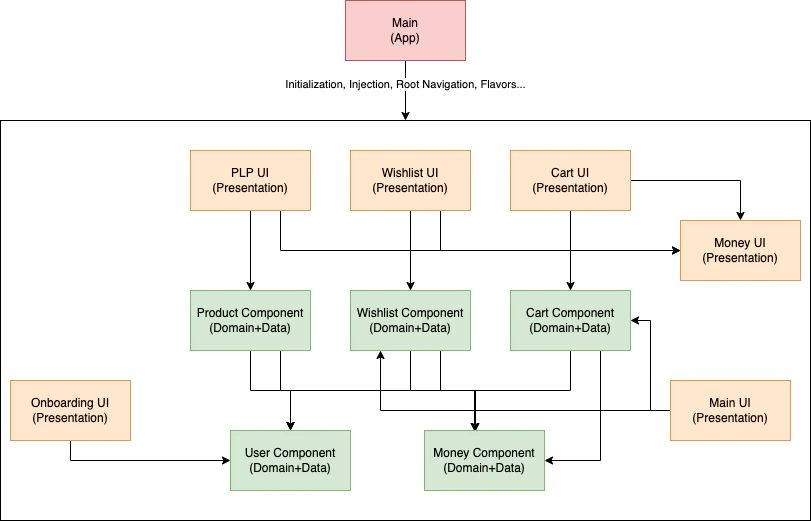

Module Dependency Graph

The project uses a modular architecture with clear dependency boundaries: Module Dependency Graph
Library modules (cache, httpclient, etc.) are omitted from the diagram for clarity. Component modules contain domain and data layers, while UI modules handle presentation.

​
Key Benefits

Each layer can be tested independently. Domain logic is tested with pure unit tests, while data and presentation layers use test doubles and mocks.Example test repository:
class TestCartRepository : CartRepository {
    val updateCartItemInvocations: MutableList<Pair<String, CartItem>> = mutableListOf()
    val cartUpdates = mutableMapOf<String, Flow<Cart>>()

    override fun updateCartItem(userId: String, cartItem: CartItem) {
        updateCartItemInvocations.add(userId to cartItem)
    }
    // ...
}
Clear separation of concerns makes it easy to locate and modify code. Each module has a single, well-defined responsibility.
New features can be added as independent modules without affecting existing code. The modular structure supports parallel development.
Component modules use Kotlin Multiplatform, enabling code sharing across platforms. They compile faster since they don’t depend on the Android framework.

​
Next Steps

Clean Architecture Deep Dive

Explore the three layers in detail with real code examples

SOLID Principles

Learn how SOLID principles are applied throughout the codebase

Modularization Strategy

Understand the Package by Component approach and module types

Component Examples

See complete component implementations
