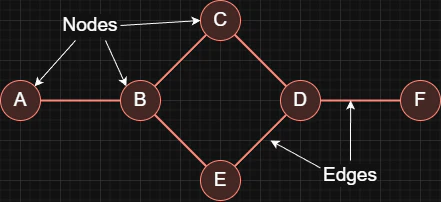

A graph is a data structure used to represent relationships between things. It is made up of nodes (vertices) that represent the objects you care about and edges that represent the connections between them. graph

​
Types of Graphs

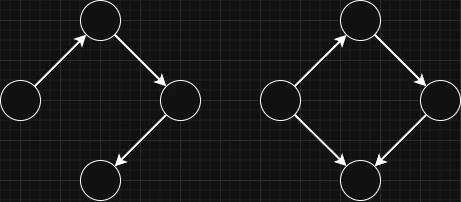

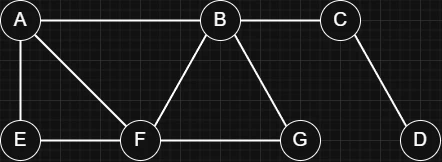

Directed Graph: Edges have a direction, so a connection goes from one node to another. directed-graph Undirected Graph: Edges have no direction, so the connection works both ways. undirected-graph Cyclic Graph: Contains at least one cycle, meaning you can start at a node and return to it by following edges. cyclic-graph Acyclic Graph: Has no cycles, so you cannot return to a starting node by following edges. acyclic-graph Unweighted Graph: Edges do not have values, so all connections are treated as equal. unweighted-graph
Here, the most efficient way from A to D is ABCD (the shortest path).

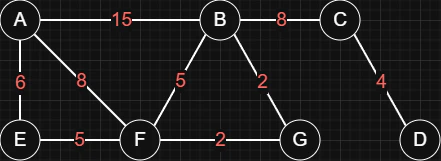

Weighted Graph: Edges have values (weights), such as distance, cost, or time. weighted-graph
Here, the most efficient way from A to D is AFGBCD (the lowest total cost).

​
Code Representations

There are three common ways to represent a graph in code.
Example graph:graph-example

​
Edge Lists

A graph is stored as a plain list of edges. Each edge is a pair (from, to) for unweighted graphs, or a triple (from, to, weight) for weighted graphs.
const edgeList = [
  ['A', 'B'],
  ['B', 'C'],
  ['B', 'E'],
  ['C', 'D'],
  ['D', 'E'],
  ['D', 'F'],
];

​
Adjacency Matrices

A graph is stored as a 2D grid of values. The cell at (i, j) indicates whether there is an edge from node i to node j (often 0/1), or stores the edge weight in weighted graphs.
const adjMatrix = {
  A: { A: 0, B: 1, C: 0, D: 0, E: 0, F: 0 },
  B: { A: 1, B: 0, C: 1, D: 0, E: 1, F: 0 },
  C: { A: 0, B: 1, C: 0, D: 1, E: 0, F: 0 },
  D: { A: 0, B: 0, C: 1, D: 0, E: 1, F: 1 },
  E: { A: 0, B: 1, C: 0, D: 1, E: 0, F: 0 },
  F: { A: 0, B: 0, C: 0, D: 1, E: 0, F: 0 },
};

​
Adjacency Lists

A graph is stored as a mapping from each node to its neighbors. Each key is a node, and its value is a list of directly connected (outgoing) nodes (or pairs like (neighbor, weight) for weighted graphs).
const adjList = {
  A: ['B'],
  B: ['A', 'C', 'E'],
  C: ['B', 'D'],
  D: ['C', 'E', 'F'],
  E: ['B', 'D'],
  F: ['D'],
};
