Overview

Explores one path fully in a graph or tree before returning to try other paths.
TimeSpace
O(n)O(h)

​
Tree DFS

Example Tree:binary-search-tree

​
Order of Searching

  • Pre-order: Node -> Left -> Right.
    • [60, 59, 28, 23, 28, 35, 77, 60, 76, 125]
  • In-order: Left -> Node -> Right.
    • [23, 28, 28, 35, 59, 60, 60, 76, 77, 125]
  • Post-order: Left -> Right -> Node.
    • [23, 35, 28, 28, 59, 76, 60, 125, 77, 60]
The order of visiting children can be changed, such as visiting the right child before the left. To do this, simply swap the code for the left and right child traversals (use right before left) in the implementation below.

​
Implementation

Go to Binary Search Tree for the complete BST implementation.
Binary Search Tree
class BinarySearchTree {
  ...

  preOrderDFS() { ... }
  inOrderDFS() { ... }
  postOrderDFS() { ... }
}
Usage:
const tree = new BinarySearchTree();

...

console.log(tree.preOrderDFS()); // [60, 59, 28, 23, 28, 35, 77, 60, 76, 125]
console.log(tree.inOrderDFS()); // [23, 28, 28, 35, 59, 60, 60, 76, 77, 125]
console.log(tree.postOrderDFS()); // [23, 35, 28, 28, 59, 76, 60, 125, 77, 60]

​
Pre-order

preOrderDFS() {
  const traversePreOrder = (node, list) => {
    if (node === null) return null;

    // node:
    list.push(node.value);

    // left:
    if (node.left) {
      traversePreOrder(node.left, list);
    }

    // right:
    if (node.right) {
      traversePreOrder(node.right, list);
    }

    return list;
  }

  return traversePreOrder(this.root, []);
}

​
In-order

inOrderDFS() {
  const traverseInOrder = (node, list) => {
    if (node === null) return null;

    // left:
    if (node.left) {
      traverseInOrder(node.left, list);
    }

    // node:
    list.push(node.value);

    // right:
    if (node.right) {
      traverseInOrder(node.right, list);
    }

    return list;
  }

  return traverseInOrder(this.root, []);
}

​
Post-order

postOrderDFS() {
  const traversePostOrder = (node, list) => {
    if (node === null) return null;

    // left:
    if (node.left) {
      traversePostOrder(node.left, list);
    }

    // right:
    if (node.right) {
      traversePostOrder(node.right, list);
    }

    // node:
    list.push(node.value);

    return list;
  };

  return traversePostOrder(this.root, []);
}

​
Graph DFS

Example Graph:graph-example

​
Adjacency Matrix

Graph DFS (adjacency matrix)
const adjMatrix = {
  A: { A: 0, B: 1, C: 0, D: 0, E: 0, F: 0 },
  B: { A: 1, B: 0, C: 1, D: 0, E: 1, F: 0 },
  C: { A: 0, B: 1, C: 0, D: 1, E: 0, F: 0 },
  D: { A: 0, B: 0, C: 1, D: 0, E: 1, F: 1 },
  E: { A: 0, B: 1, C: 0, D: 1, E: 0, F: 0 },
  F: { A: 0, B: 0, C: 0, D: 1, E: 0, F: 0 },
};

function adjMatrixDFS(node, graph, values, seen) {
  values.push(node);

  seen[node] = true;

  const connections = graph[node];

  for (const key in connections) {
    if (connections[key] > 0 && !seen[key]) {
      adjMatrixDFS(key, graph, values, seen);
    }
  }

  return values;
}
Usage:
console.log(adjMatrixDFS('C', adjMatrix, [], {})); // ['C', 'B', 'A', 'E', 'D', 'F']
console.log(adjMatrixDFS('A', adjMatrix, [], {})); // ['A', 'B', 'C', 'D', 'E', 'F']
console.log(adjMatrixDFS('B', adjMatrix, [], {})); // ['B', 'A', 'C', 'D', 'E', 'F']

​
Adjacency List

Graph DFS (adjacency list)
const adjList = {
  A: ['B'],
  B: ['A', 'C', 'E'],
  C: ['B', 'D'],
  D: ['C', 'E', 'F'],
  E: ['B', 'D'],
  F: ['D'],
};

function adjListDFS(node, graph, values, seen) {
  values.push(node);

  seen[node] = true;

  const connections = graph[node];

  for (let i = 0; i < connections.length; i++) {
    const key = connections[i];

    if (!seen[key]) {
      adjListDFS(key, graph, values, seen);
    }
  }

  return values;
}
Usage:
console.log(adjListDFS('C', adjList, [], {})); // ['C', 'B', 'A', 'E', 'D', 'F']
console.log(adjListDFS('A', adjList, [], {})); // ['A', 'B', 'C', 'D', 'E', 'F']
console.log(adjListDFS('B', adjList, [], {})); // ['B', 'A', 'C', 'D', 'E', 'F']

​
Matrix (2D Array) DFS

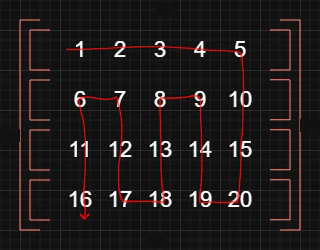

Example 2D Array:matrix-dfsThe red line shows the search flow starting from points row: 0 and col: 0.

​
Implementation

Matrix DFS
const arr2d = [
  [1, 2, 3, 4, 5],
  [6, 7, 8, 9, 10],
  [11, 12, 13, 14, 15],
  [16, 17, 18, 19, 20],
];

const directions = [
  [-1, 0], // up
  [0, 1], // right
  [1, 0], // down
  [0, -1], // left
];

function matrixDFS(matrix, row, col, seen, values) {
  if (row < 0 || col < 0 || row >= matrix.length || col >= matrix[0].length || seen.has(`${row}${col}`)) {
    return;
  }

  values.push(matrix[row][col]);

  seen.add(`${row}${col}`);

  for (let i = 0; i < directions.length; i++) {
    const currDir = directions[i];
    matrixDFS(matrix, row + currDir[0], col + currDir[1], seen, values);
  }

  return values;
}
Usage:
console.log(matrixDFS(arr2d, 0, 0, new Set(), [])); // [1, 2, 3, 4, 5, 10, 15, 20, 19, 14, 9, 8, 13, 18, 17, 12, 7, 6, 11, 16]
console.log(matrixDFS(arr2d, 1, 0, new Set(), [])); // [6, 1, 2, 3, 4, 5, 10, 15, 20, 19, 14, 9, 8, 13, 18, 17, 12, 7, 11, 16]
console.log(matrixDFS(arr2d, 2, 3, new Set(), [])); // [14, 9, 4, 5, 10, 15, 20, 19, 18, 13, 8, 3, 2, 7, 12, 17, 16, 11, 6, 1]
