Overview

Step 4 creates symbolic links in the Miele-LXIV Xcode project’s Binaries directory that point to the libraries you built and installed in Step 3. This allows the Xcode project to reference the compiled libraries without hardcoding absolute paths. The Miele-LXIV Xcode project expects to find third-party libraries in its Binaries directory. Rather than copying the installed libraries (which would duplicate gigabytes of data), we create symbolic links that point to the actual installation location. This approach:
  • Saves disk space (no duplication)
  • Makes updates easier (update once, link points to new version)
  • Keeps the Xcode project portable
  • Allows multiple projects to share the same library installations

​
Binaries Directory Structure

After this step, the structure will be:
Miele_LXIV.xcodeproj/
└── Binaries/
    ├── DCMTK -> /path/to/BIN/dcmtk-3.6.x
    ├── VTK -> /path/to/BIN/VTK-9.x.x
    ├── ITK -> /path/to/BIN/InsightToolkit-5.x.x
    ├── openjpeg -> /path/to/BIN/openjpeg-x.x.x
    ├── openssl -> /path/to/BIN/openssl-x.x.x
    ├── libjpeg -> /path/to/BIN/jpeg-x
    ├── libpng -> /path/to/BIN/libpng-x.x.x
    ├── libtiff -> /path/to/BIN/tiff-x.x.x
    ├── libxml2 -> /path/to/BIN/libxml2-vx.x.x
    ├── libiconv -> /path/to/BIN/libiconv-x.x
    ├── zlib -> /path/to/BIN/zlib-x.x.x
    ├── Jasper -> /path/to/BIN/jasper-x.x.x
    ├── GLEW -> /path/to/BIN/glew-x.x.x
    └── GLM -> /path/to/BIN/glm-x.x.x
1

Open the configuration menu

From your $EASY_HOME directory:
./reconfigure.sh
2

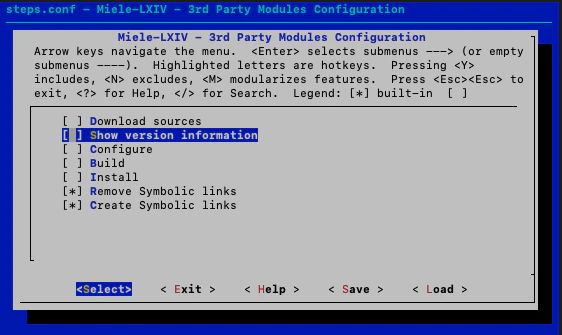

Enable 'Create Symbolic links'

In the kconfig-mconf interface:
  1. Disable all other steps (Download, Configure, Build, Install)
  2. Enable “Create Symbolic links”
  3. Optionally enter the submenu to select which specific libraries to link (all are recommended) Symbolic links configuration
3

Configure Unzip Binaries

Within the “Create Symbolic links” submenu:
  1. Ensure “Unzip binaries” is enabled
  2. This extracts pre-compiled binaries that ship with Miele-LXIV
  3. All library options should be enabled (JPEG, TIFF, XML2, ZLIB, VTK, ITK, DCMTK, etc.)
4

Save and exit

  1. Select Save
  2. Confirm with Ok
  3. Select Exit
  4. Confirm Exit again
5

Execute the symlink creation

Run the build script:
./build.sh
This will:
  • Unzip the bundled Binaries if needed
  • Create symbolic links for each enabled library

​
What Gets Linked

The script creates symbolic links for:

​
Core Libraries (always needed)

  • DCMTK - DICOM functionality
  • VTK - Visualization
  • ITK - Image processing
  • libjpeg - JPEG support
  • libpng - PNG support
  • libtiff - TIFF support
  • libxml2 - XML parsing
  • libiconv - Character encoding
  • zlib - Compression
  • OpenSSL - Cryptography
  • OpenJPEG - JPEG 2000
  • Jasper - Image formats

​
Optional Libraries

  • GLEW - OpenGL extensions
  • GLM - OpenGL mathematics
After the script completes, verify the symbolic links were created:
ls -la $SRC_APP/Binaries/
You should see output like:
lrwxr-xr-x  1 user  staff  45 Mar  4 10:30 DCMTK -> /path/to/install/dcmtk-3.6.7
lrwxr-xr-x  1 user  staff  42 Mar  4 10:30 VTK -> /path/to/install/VTK-9.2.6
lrwxr-xr-x  1 user  staff  55 Mar  4 10:30 ITK -> /path/to/install/InsightToolkit-5.3.0
...
The -> arrow shows where each link points. If you need to update library versions, first remove the old symbolic links:
1

Enable 'Remove Symbolic links'

Run ./reconfigure.sh and enable “Remove Symbolic links” instead of “Create Symbolic links”
2

Run build script

./build.sh
3

Create new links

Follow the normal symlink creation process to create links to your updated libraries

​
Unzip Binaries

The first time you create symbolic links, the script also unzips pre-compiled binaries included with Miele-LXIV:
  • Framework libraries
  • Additional resources
  • Configuration templates
This is handled automatically when “Unzip binaries” is enabled in the configuration.

​
Troubleshooting

This means the Miele-LXIV source wasn’t downloaded in Step 2.
  • Verify you enabled “APP” in the Download sources menu
  • Check that $SRC/miele-easy-x.x.x exists
  • Re-run Step 2 if needed

​
Configuration Files

The symlink creation step also initializes configuration files in the Miele-LXIV source:
  • url.h - Created from url.in.h template
  • identity.conf - Build identity configuration
  • fixup-build-phase.sh - Build phase helper script
Edit these files to customize your Miele-LXIV installation.

​
Next Step

Step 5: Xcode Configuration

With all libraries linked, perform the final manual Xcode project configuration.
